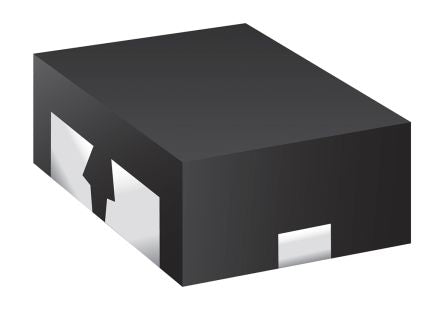

Bourns CGF0804TFH-R900-2L, Quad Bi-Directional EMI Filter & ESD Protector, 4-Pin 0804 [CGF0804TFH-R900-2L]; 175-1714
by Bourns
0₫
Mã kho: 1751714
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | 2x Common Cathode Pair |
| Mounting Type | Surface Mount |
| Package Type | 804 |
| Pin Count | 4 |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Capacitance | 0.6pF |
| Length | 0.85mm |
| Maximum Reverse Leakage Current | 1µA |
| Width | 0.65mm |
| Height | 0.4mm |
| Dimensions | 0.85 x 0.65 x 0.4mm |
