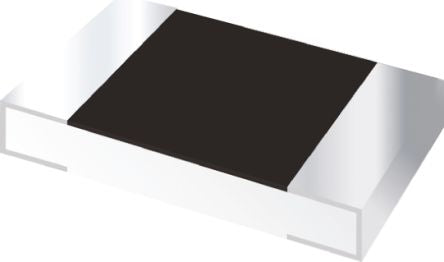

Bourns CGA0603MLC-24E, ESD Protection Diode, 2-Pin MLC [CGA0603MLC-24E]; 794-8003
by Bourns
0₫
Mã kho: 7948003
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Maximum Clamping Voltage | 25V |
Mounting Type | Surface Mount |
Package Type | MLC |
Pin Count | 2 |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Length | 1.6mm |
Dimensions | 1.6 x 0.8 x 0.45mm |
Height | 0.45mm |
Width | 0.8mm |
Maximum Reverse Leakage Current | 5nA |
