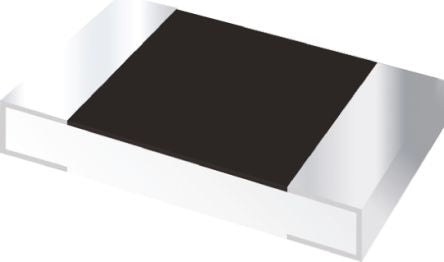

Bourns CGA0603MLC-12E, ESD Protection Diode, 2-Pin MLC [CGA0603MLC-12E]; 794-8000
by Bourns
0₫
Mã kho: 7948000
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Clamping Voltage | 30V |
| Mounting Type | Surface Mount |
| Package Type | MLC |
| Pin Count | 2 |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 0.8mm |
| Dimensions | 1.6 x 0.8 x 0.45mm |
| Height | 0.45mm |
| Maximum Reverse Leakage Current | 50nA |
| Length | 1.6mm |
