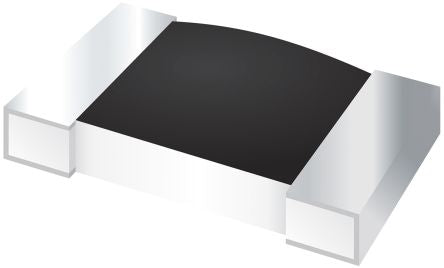

Bourns CG0201MLC-05H, Bi-Directional ESD Protection Diode, 2-Pin 0201 [CG0201MLC-05H]; 174-2491
by Bourns
0₫
Mã kho: 1742491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 30V |
| Mounting Type | Surface Mount |
| Package Type | 201 |
| Pin Count | 2 |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| RMS Voltage | 1Vrms |
| Capacitance | 0.2pF |
| Working Voltage | 5V |
| Length | 0.63mm |
| Dimensions | 0.63 x 0.3 x 0.23mm |
| Maximum Reverse Leakage Current | 10nA |
| Width | 0.3mm |
| Height | 0.23mm |
