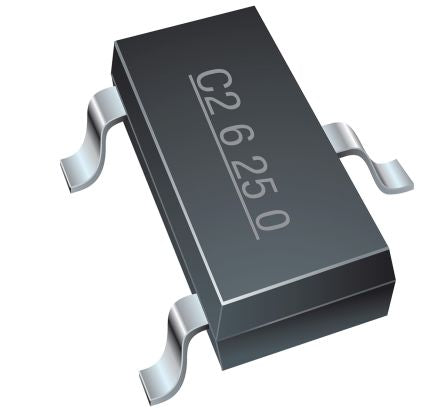

DIO TVS VWM 8V 500W BIDIR SOT23 AECQ [CDSOT23-T08LC-Q]; 187-1414
by Bourns
0₫
Mã kho: 1871414
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Array |
| Maximum Clamping Voltage | 13.4V |
| Minimum Breakdown Voltage | 8.5 (Max)V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Maximum Reverse Stand-off Voltage | 8V |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 34A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 2.8 x 1.2 x 0.84mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 10µA |
| Working Voltage | 8V |
| Length | 2.8mm |
| Capacitance | 5pF |
| Automotive Standard | AEC-Q101 |
| Height | 0.84mm |
| Width | 1.2mm |
