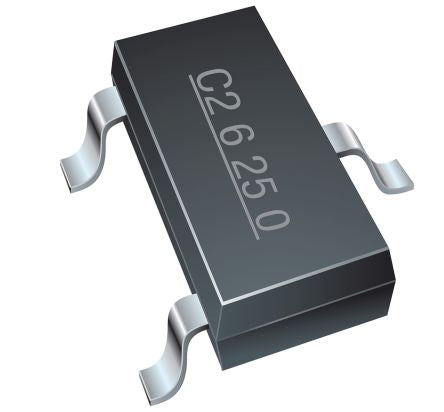

DIO TVS VWM 5V 500W BIDIR SOT23 AECQ [CDSOT23-T05LC-Q]; 187-1491
by Bourns
0₫
Mã kho: 1871491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Array |
| Maximum Clamping Voltage | 9.8V |
| Minimum Breakdown Voltage | 6 (Max)V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 42A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 2.8 x 1.2 x 0.84mm |
| Maximum Reverse Leakage Current | 20µA |
| Test Current | 1mA |
| Length | 2.8mm |
| Capacitance | 5pF |
| Automotive Standard | AEC-Q101 |
| Working Voltage | 5V |
| Height | 0.84mm |
| Width | 1.2mm |
