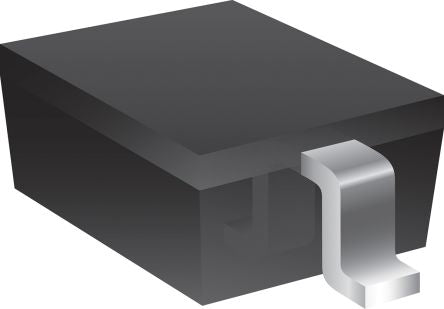

Bourns CDSOD323-T36SC, Bi-Directional TVS Diode, 400W, 2-Pin SOD-323 [CDSOD323-T36SC]; 174-2485
by Bourns
0₫
Mã kho: 1742485
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 60V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 1µA |
| Working Voltage | 36V |
| Dimensions | 1.9 x 1.45 x 1.01mm |
| Length | 1.9mm |
| Width | 1.45mm |
| Capacitance | 35pF |
| Height | 1.01mm |
| Surge Current Rating | 24A |
| Test Current | 1mA |
