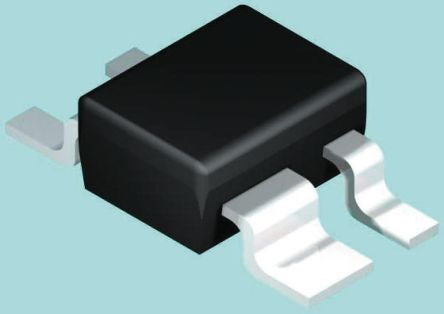

Bourns CD143A-SR05, Quint Uni-Directional TVS Diode Array, 500W, 4-Pin SOT-143 [CD143A-SR05]; 773-4520
by Bourns
0₫
Mã kho: 7734520
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 20V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SOT-143 |
| Pin Count | 4 |
| Peak Pulse Power Dissipation | 500W |
| Maximum Peak Pulse Current | 30A |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 5µA |
| Length | 3.04mm |
| Width | 1.39mm |
| Height | 1.04mm |
| Dimensions | 3.04 x 1.39 x 1.04mm |
| Test Current | 1mA |
