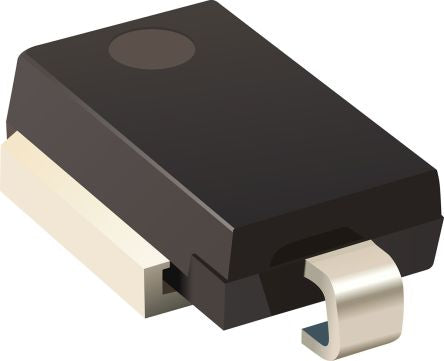

DIO TVS VWM 58V 15kW BIDIR DO218 AECQ [15KPA058C-SD-Q]; 195-2384
by Bourns
0₫
Mã kho: 1952384
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Bi-Directional |
Maximum Clamping Voltage | 86.3V |
Minimum Breakdown Voltage | 59.1V |
Mounting Type | Surface Mount |
Package Type | DO-218 |
Maximum Reverse Stand-off Voltage | 66V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 15kW |
Maximum Peak Pulse Current | 1000A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Length | 13.5mm |
Automotive Standard | AEC-Q101 |
Surge Current Rating | 300A |
Maximum Reverse Leakage Current | 10µA |
Height | 4.85mm |
Width | 8.5mm |
Test Current | 5mA |
Dimensions | 13.5 x 8.5 x 4.85mm |
