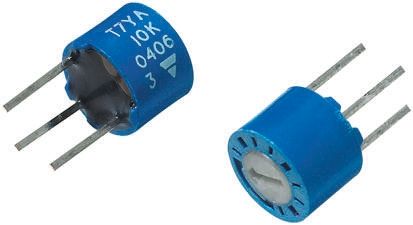

1kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Vishay T7 Series [T7YA102MT20]; 167-9363
by Vishay
0₫
Mã kho: 1679363
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 1 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Orientation | Top Adjust |
| Power Rating | 0.5W |
| Series | T7 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Shaft Diameter | 4 mm |
| Diameter | 7mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
