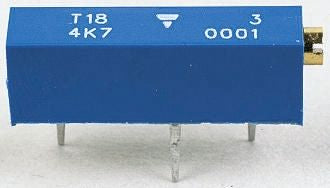

5kΩ Through Hole Trimmer Potentiometer 0.75W Side Adjust Vishay T18 Series [T18502KT10]; 788-5000
by Vishay
0₫
Mã kho: 7885000
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 5 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 15 |
| Orientation | Side Adjust |
| Power Rating | 0.75W |
| Series | T18 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Length | 19mm |
| Shaft Diameter | 2.5 mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
