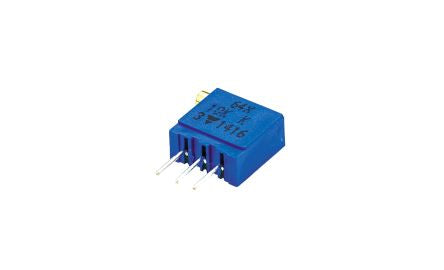

Vishay 64X Series 19 (Electrical), 22 (Mechanical)-Turn Through Hole Trimmer Resistor with Pin Terminations, 10kΩ ±10% [M64X103KB40]; 154-2246
by Vishay
0₫
Mã kho: 1542246
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 10 kΩ |
| Number of Turns | 19 (Electrical), 22 (Mechanical) |
| Mounting Type | Through Hole |
| Power Rating | 1/2W |
| Series | 64X |
| Orientation | Side Adjust |
| Termination Style | Pin |
| Length | 11mm |
| Depth | 5mm |
| Height | 9.8mm |
| Dimensions | 11 x 5 x 9.8mm |
| Shaft Diameter | 2.2 mm |
| Tolerance | ±10% |
| Minimum Operating Temperature | -55°C |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Operating Temperature | +155°C |
