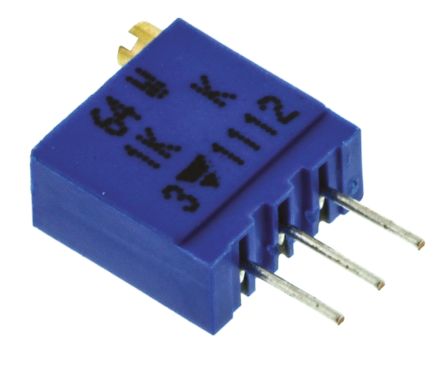

1kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Vishay 64W Series [M64W102KB40]; 169-3076
by Vishay
0₫
Mã kho: 1693076
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 1 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 19 (Electrical), 22 (Mechanical) |
| Orientation | Top Adjust |
| Power Rating | 0.5W |
| Series | 64W |
| Termination Style | Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Shaft Diameter | 2.2 mm |
| Length | 9.7mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +155°C |
