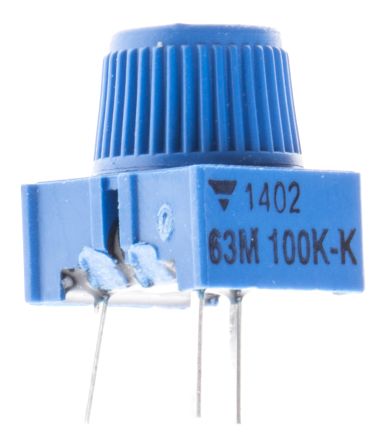

Vishay 63M-T607 Series Through Hole Trimmer Resistor with Pin Terminations, 100kΩ ±10% 1/2W ±100ppm/°C Finger Adjust [M63M104KB30T607]; 154-2555
by Vishay
0₫
Mã kho: 1542555
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 100 kΩ |
| Number of Turns | 1 |
| Mounting Type | Through Hole |
| Power Rating | 1/2W |
| Series | 63M-T607 |
| Orientation | Finger Adjust |
| Termination Style | Pin |
| Length | 9.52mm |
| Depth | 9.52mm |
| Height | 10.41mm |
| Dimensions | 9.52 x 9.52 x 10.41mm |
| Shaft Diameter | 8.38 mm |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
