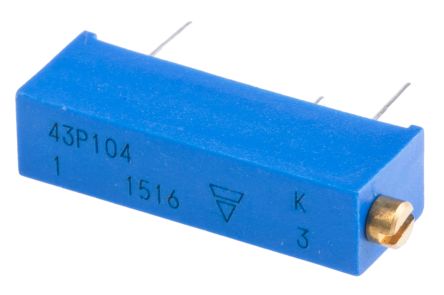

Vishay 43P Series 20-Turn Through Hole Trimmer Resistor with Pin Terminations, 100kΩ ±10% 1/2W ±100ppm/°C [M43P104KB40]; 162-265
by Vishay
0₫
Mã kho: 162265
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 100 kΩ |
| Number of Turns | 20 |
| Mounting Type | Through Hole |
| Power Rating | 1/2W |
| Series | 43P |
| Orientation | Side Adjust |
| Termination Style | Pin |
| Length | 20.57mm |
| Depth | 4.83mm |
| Height | 6.35mm |
| Dimensions | 20.57 x 4.83 x 6.35mm |
| Shaft Diameter | 2.54 mm |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
