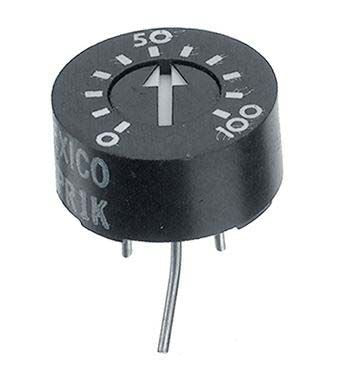

100kΩ Through Hole Trimmer Potentiometer 1W Top Adjust TT Electronics/BI 93 Series [93PR100KLF]; 144-2191
0₫
Mã kho: 1442191
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 100 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Orientation | Top Adjust |
| Power Rating | 1W |
| Series | 93 |
| Termination Style | Solder Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Voltage Rating | 200 V dc |
| Diameter | 12.7mm |
| Minimum Operating Temperature | -55°C |
| Mechanical Rotation | 270° |
| Maximum Operating Temperature | +125°C |
| Element Material | Cermet |
