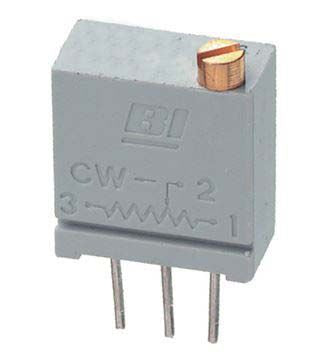

500Ω Through Hole Trimmer Potentiometer 0.5W Top Adjust TT Electronics/BI 67 Series [67WR500LF]; 144-2201
0₫
Mã kho: 1442201
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 500 Ω |
| Mounting Type | Through Hole |
| Number of Turns | 20 |
| Orientation | Top Adjust |
| Power Rating | 0.5W |
| Series | 67 |
| Termination Style | Solder Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Voltage Rating | 200 V dc |
| Shaft Diameter | 2.29 (Metal Adjustment Screw) mm |
| Length | 9.53mm |
| Minimum Operating Temperature | -55°C |
| Element Material | Cermet |
| Maximum Operating Temperature | +125°C |
