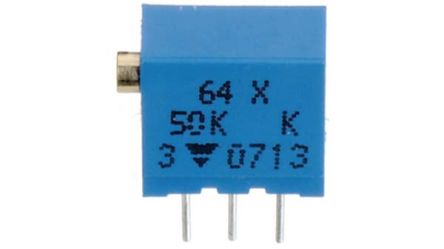

50kΩ Through Hole Trimmer Potentiometer 0.25 W @ 85 °C Top Adjust TT Electronics/BI 64 Series [64YR50KLF]; 144-2195
0₫
Mã kho: 1442195
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 50 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 12 |
| Orientation | Top Adjust |
| Power Rating | 0.25 W @ 85 °C |
| Series | 64 |
| Termination Style | Solder Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Voltage Rating | 200 V dc |
| Length | 6.35mm |
| Shaft Diameter | 1.78 (Metal Adjustment Screw) mm |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
| Element Material | Cermet |
