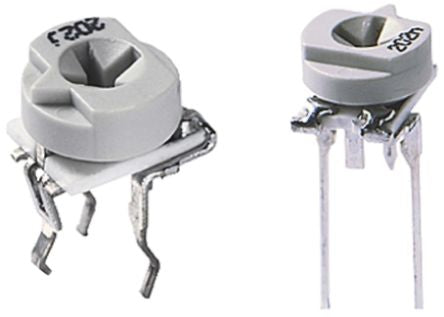

1MΩ Through Hole Trimmer Potentiometer 0.3W Top Adjust Panasonic EVMAA Series [EVMAASA00B16]; 726-3867
by Panasonic
0₫
Mã kho: 7263867
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 1 MΩ |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Orientation | Top Adjust |
| Power Rating | 0.3W |
| Series | EVMAA |
| Termination Style | Pin |
| Tolerance | ±25% |
| Temperature Coefficient | ±200ppm/°C |
| Length | 7.8mm |
| Diameter | 6.9mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
