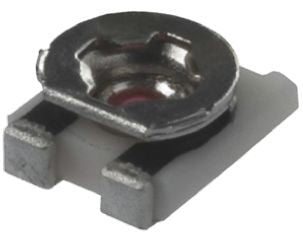

5kΩ SMD Trimmer Potentiometer 0.15W Top Adjust Panasonic EVM2W Series [EVM2WSX80B53]; 106-8189
by Panasonic
0₫
Mã kho: 1068189
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 5 kΩ |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Orientation | Top Adjust |
| Power Rating | 0.15W |
| Series | EVM2W |
| Termination Style | Solder Pad |
| Tolerance | ±25% |
| Temperature Coefficient | ±250ppm/°C |
| Length | 2.2mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
