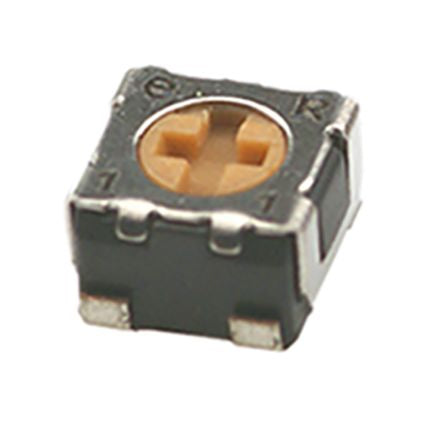

10kΩ SMD Trimmer Potentiometer 0.125W Top Adjust Copal Electronics ST-32 Series [ST-32EA 10kR]; 896-7103
0₫
Mã kho: 8967103
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 10 kΩ |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Orientation | Top Adjust |
| Power Rating | 0.125W |
| Series | ST-32 |
| Termination Style | Solder Pin |
| Tolerance | ±20% |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Voltage Rating | 35.4 V |
| Length | 3.4mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Element Material | Cermet |
| Mechanical Rotation | 250° |
