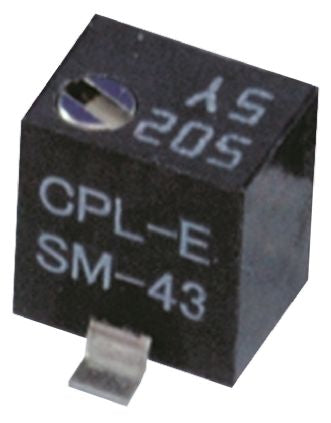

1kΩ SMD Trimmer Potentiometer 0.25W Top Adjust Copal Electronics SM-43 Series [SM-43X 1k Ohm]; 602-5487
0₫
Mã kho: 6025487
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 1 kΩ |
| Mounting Type | Surface Mount |
| Number of Turns | 5 |
| Orientation | Top Adjust |
| Power Rating | 0.25W |
| Series | SM-43 |
| Termination Style | Gull Wing |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Shaft Diameter | 1.5 mm |
| Length | 4.8mm |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
