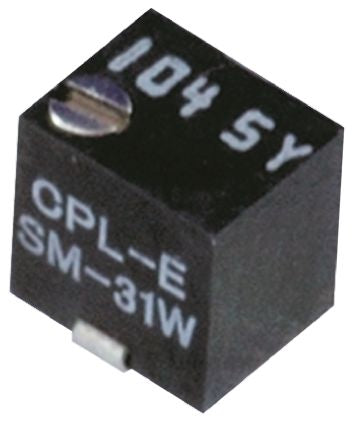

5kΩ SMD Trimmer Potentiometer 0.125W Top Adjust Copal Electronics SM-31 Series [SM-31W 5k Ohm]; 602-4147
0₫
Mã kho: 6024147
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 5 kΩ |
| Mounting Type | Surface Mount |
| Number of Turns | 5 |
| Orientation | Top Adjust |
| Power Rating | 0.125W |
| Series | SM-31 |
| Termination Style | J-Hook |
| Tolerance | ±20% |
| Temperature Coefficient | ±100ppm/°C |
| Length | 3.9mm |
| Shaft Diameter | 1.3 mm |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
