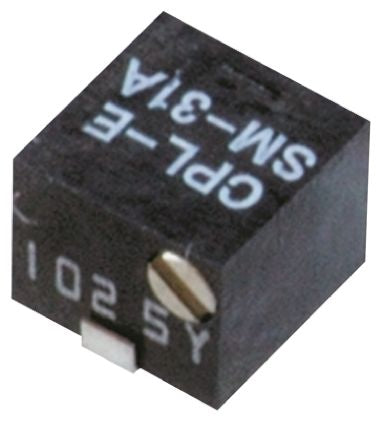

1kΩ SMD Trimmer Potentiometer 0.125W Side Adjust Copal Electronics SM-31 Series [SM-31A 1k Ohm]; 602-3790
0₫
Mã kho: 6023790
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 1 kΩ |
| Mounting Type | Surface Mount |
| Number of Turns | 5 |
| Orientation | Side Adjust |
| Power Rating | 0.125W |
| Series | SM-31 |
| Termination Style | J-Hook |
| Tolerance | ±20% |
| Temperature Coefficient | ±100ppm/°C |
| Shaft Diameter | 1.3 mm |
| Length | 3.9mm |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
