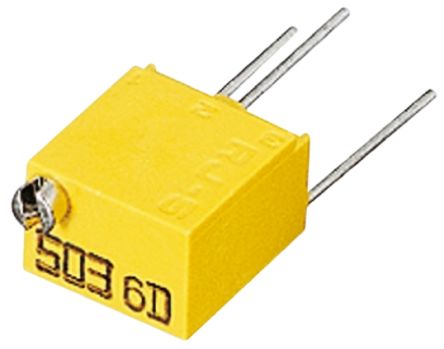

500kΩ Through Hole Trimmer Potentiometer 0.25W Top Adjust Copal Electronics RJ-5 Series [RJ-5EW 500k Ohm]; 474-7343
0₫
Mã kho: 4747343
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 500 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 14 |
| Orientation | Top Adjust |
| Power Rating | 0.25W |
| Series | RJ-5 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Length | 6mm |
| Shaft Diameter | 1.6 mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +120°C |
