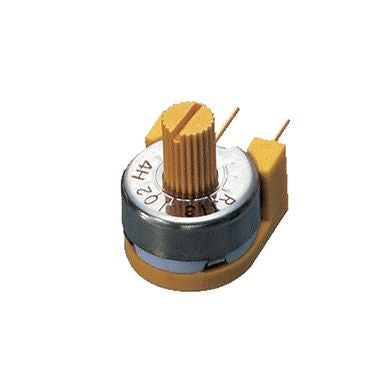

2kΩ Through Hole Trimmer Potentiometer 0.75W Side Adjust Copal Electronics RJ-13 Series [RJ-13SR 2K Ohm (202)]; 182-5703
0₫
Mã kho: 1825703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 2 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Orientation | Side Adjust |
| Power Rating | 0.75W |
| Series | RJ-13 |
| Termination Style | Solder |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Voltage Rating | 38.7 V |
| Diameter | 12.5mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +120°C |
| Mechanical Rotation | 270° |
| Element Material | Cermet |
