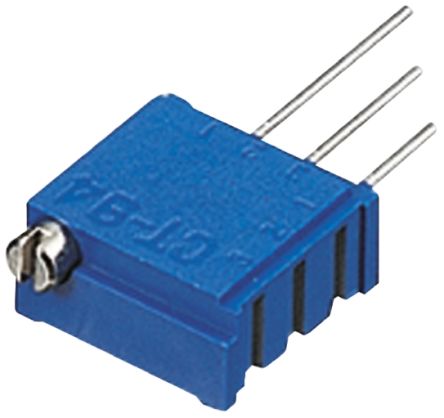

10kΩ Through Hole Trimmer Potentiometer 1/2W Top Adjust Copal Electronics CT-94 Series [CT-94EW 10k Ohm]; 474-7573
0₫
Mã kho: 4747573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 10 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 15 |
| Orientation | Top Adjust |
| Power Rating | 1/2W |
| Series | CT-94 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Shaft Diameter | 2.3 mm |
| Length | 9.6mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
