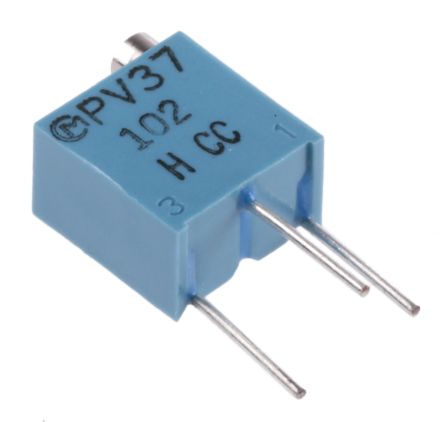

1kΩ Through Hole Trimmer Potentiometer 0.25W Top Adjust Bourns PV37 Series [PV37W102C01B00]; 167-5329
by Bourns
0₫
Mã kho: 1675329
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 1 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 12 |
| Orientation | Top Adjust |
| Power Rating | 0.25W |
| Series | PV37 |
| Termination Style | Solder Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±150ppm/°C |
| Shaft Diameter | 1.8 mm |
| Length | 6.4mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
