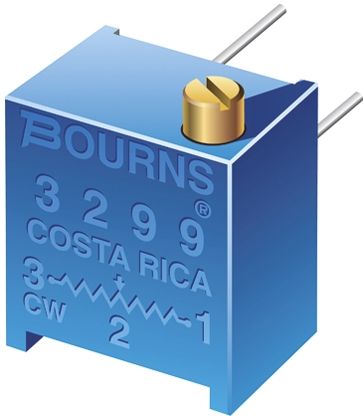

2kΩ Through Hole Trimmer Potentiometer 0.5W Side Adjust Bourns 3299 Series [3299P-1-202LF]; 167-0075
by Bourns
0₫
Mã kho: 1670075
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 2 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 25 |
| Orientation | Side Adjust |
| Power Rating | 0.5W |
| Series | 3299 |
| Termination Style | Solder Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Length | 10.03mm |
| Shaft Diameter | 2.29 mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
