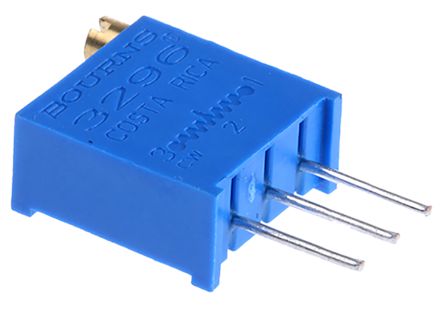

2MΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3296 Series [3296W-1-205LF]; 167-3391
by Bourns
0₫
Mã kho: 1673391
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 2 MΩ |
| Mounting Type | Through Hole |
| Number of Turns | 25 |
| Orientation | Top Adjust |
| Power Rating | 0.5W |
| Series | 3296 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Length | 9.53mm |
| Shaft Diameter | 2.19 mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
