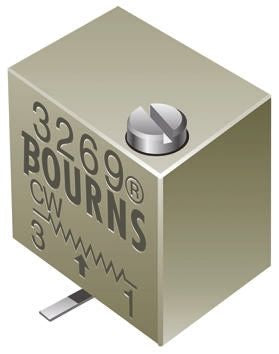

25kΩ SMD Trimmer Potentiometer 0.25W Top Adjust Bourns 3269 Series [3269W-1-253LF]; 171-1065
by Bourns
0₫
Mã kho: 1711065
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 25 kΩ |
| Mounting Type | Surface Mount |
| Number of Turns | 12 |
| Orientation | Top Adjust |
| Power Rating | 0.25W |
| Series | 3269 |
| Termination Style | Solder Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Shaft Diameter | 1.78 mm |
| Length | 6.35mm |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
