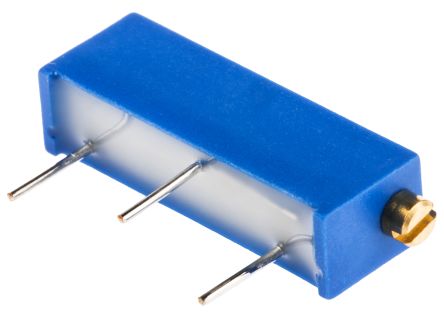

10kΩ Through Hole Trimmer Potentiometer 0.75W Side Adjust Bourns 3006 Series [3006P-1-103LF]; 521-9041
by Bourns
0₫
Mã kho: 5219041
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 10 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 15 |
| Orientation | Side Adjust |
| Power Rating | 0.75W |
| Series | 3006 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Length | 20.57mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
