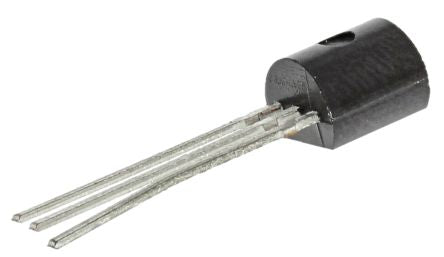

MAC97A8 0.6A, 600V, TRIAC, Gate Trigger 2V 7mA, 3-pin, Through Hole, TO-92 WeEn Semiconductors Co., Ltd [MAC97A8]; 169-7194
0₫
Mã kho: 1697194
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.6A |
| Mounting Type | Through Hole |
| Package Type | TO-92 |
| Maximum Gate Trigger Current | 7mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 8.8A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 2V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 10mA |
| Dimensions | 4.2 x 4.8 x 5.2mm |
| Length | 4.2mm |
| Width | 4.8mm |
| Height | 5.2mm |
| Repetitive Peak Off-State Current | 100µA |
| Peak On-State Voltage | 1.9V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
