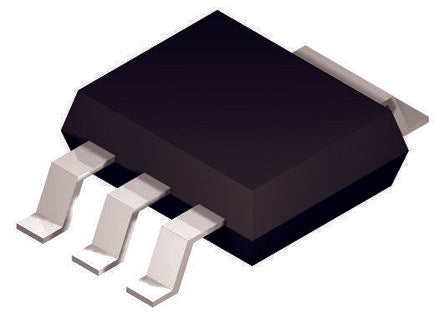

BTA2008W-600D 0.8A, 600V, TRIAC 5mA, 3+Tab-pin, Surface Mount, SOT-223 WeEn Semiconductors Co., Ltd [BTA2008W-600D]; 165-9788
0₫
Mã kho: 1659788
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.8A |
| Mounting Type | Surface Mount |
| Package Type | SOT-223 |
| Maximum Gate Trigger Current | 5mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 9A |
| Pin Count | 3+Tab |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Dimensions | 6.7 x 3.7 x 1.8mm |
| Length | 6.7mm |
| Width | 3.7mm |
| Height | 1.8mm |
| Maximum Operating Temperature | +125 °C |
