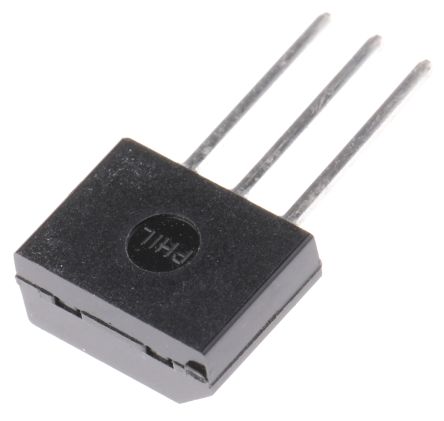

Z0410MF 1AA2 4A, 600V, TRIAC, Gate Trigger 1.3V 25mA, 3-pin, Through Hole, TO-202 STMicroelectronics [Z0410MF 1AA2]; 165-7646
0₫
Mã kho: 1657646
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 4A |
| Mounting Type | Through Hole |
| Package Type | TO-202 |
| Maximum Gate Trigger Current | 25mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 21A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 25mA |
| Dimensions | 10.1 x 4.5 x 7.3mm |
| Length | 10.1mm |
| Width | 4.5mm |
| Height | 7.3mm |
| Repetitive Peak Off-State Current | 0.005mA |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 2V |
