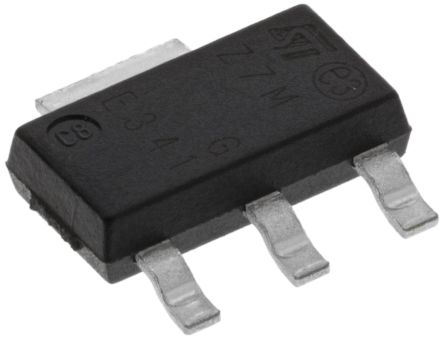

Z0107MN 5AA4 1A, 600V, TRIAC, Gate Trigger 1.3V 7mA, 3+Tab-pin, Surface Mount, SOT-223 STMicroelectronics [Z0107MN 5AA4]; 168-6277
0₫
Mã kho: 1686277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 1A |
| Mounting Type | Surface Mount |
| Package Type | SOT-223 |
| Maximum Gate Trigger Current | 7mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 8.5A |
| Pin Count | 3+Tab |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 10mA |
| Dimensions | 6.5 x 3.5 x 1.8mm |
| Length | 6.5mm |
| Width | 3.5mm |
| Height | 1.8mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 0.005mA |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.56V |
