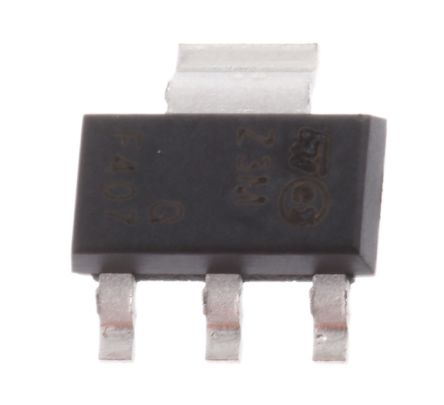

Z0103MN 5AA4 1A, 600V, TRIAC, Gate Trigger 1.3V 5mA, 3+Tab-pin, Surface Mount, SOT-223 STMicroelectronics [Z0103MN 5AA4]; 165-6859
0₫
Mã kho: 1656859
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 1A |
| Mounting Type | Surface Mount |
| Package Type | SOT-223 |
| Maximum Gate Trigger Current | 5mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 8.5A |
| Pin Count | 3+Tab |
| Maximum Gate Trigger Voltage | 1.3V |
| Maximum Holding Current | 7mA |
| Dimensions | 6.7 x 3.7 x 1.8mm |
| Length | 6.7mm |
| Width | 3.7mm |
| Height | 1.8mm |
| Peak On-State Voltage | 1.6V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
