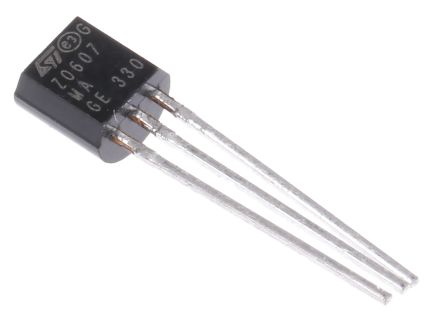

Z00607MA 1BA2 0.8A, 600V, TRIAC, Gate Trigger 1.3V 7mA, 3-pin, Through Hole, TO-92 STMicroelectronics [Z00607MA 1BA2]; 168-6241
0₫
Mã kho: 1686241
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.8A |
| Mounting Type | Through Hole |
| Package Type | TO-92 |
| Maximum Gate Trigger Current | 7mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 9.5A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 5mA |
| Dimensions | 4.7 x 3.7 x 4.4mm |
| Length | 4.7mm |
| Width | 3.7mm |
| Height | 4.4mm |
| Maximum Operating Temperature | +110 °C |
| Repetitive Peak Off-State Current | 0.005mA |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.5V |
