| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 30A |
| Mounting Type | Surface Mount |

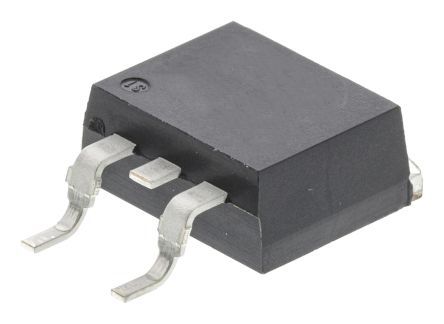

| Package Type | D2PAK |
| Maximum Gate Trigger Current | 35mA |
| Repetitive Peak Reverse Voltage | 900V |
| Surge Current Rating | 283A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Maximum Holding Current | 60mA |
| Dimensions | 10.28 x 9.35 x 4.6mm |
| Length | 10.28mm |
| Width | 9.35mm |
| Height | 4.6mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
