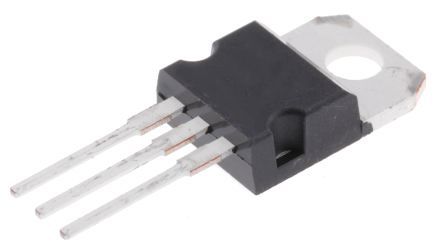

STMicroelectronics, T2550-12I [T2550-12I]; 188-8298
0₫
Mã kho: 1888298
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 25A |
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Gate Trigger Current | 50mA |
| Surge Current Rating | 252A |
| Pin Count | 3 |
| Repetitive Peak Forward Blocking Voltage | 1200V |
| Maximum Holding Current | 60mA |
| Dimensions | 10.4 x 4.6 x 15.9mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 15.9mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
