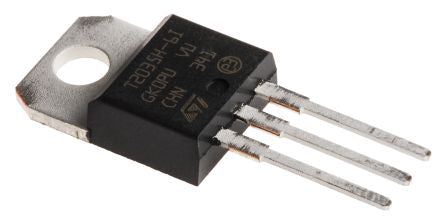

T2035H-6I 20A, 600V, TRIAC, Gate Trigger 1V 35mA, 3-pin, Through Hole, TO-220AB STMicroelectronics [T2035H-6I]; 168-6667
0₫
Mã kho: 1686667
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 20A |
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Gate Trigger Current | 35mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 210A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 35mA |
| Dimensions | 10.4 x 4.6 x 9.3mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 9.3mm |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.5V |
| Maximum Operating Temperature | +150 °C |
| Repetitive Peak Off-State Current | 0.005mA |
