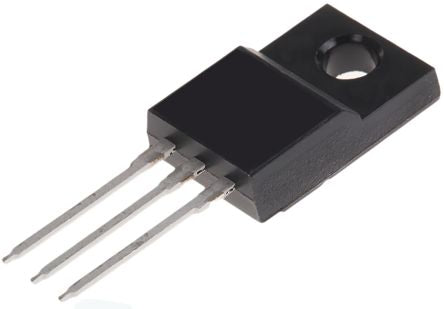

T1610T-8FP 16A, 800V, TRIAC, Gate Trigger 1.3V 10mA, 3-pin, Through Hole, TO-220ABFP STMicroelectronics [T1610T-8FP]; 168-8849
0₫
Mã kho: 1688849
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 16A |
| Mounting Type | Through Hole |
| Package Type | TO-220ABFP |
| Maximum Gate Trigger Current | 10mA |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 126A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Maximum Holding Current | 15mA |
| Dimensions | 10.4 x 4.6 x 16.4mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 16.4mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 7.5µA |
