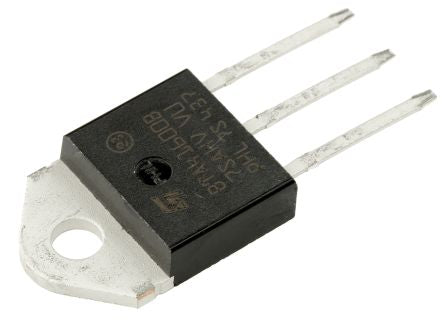

BTA41-600BRG 40A, 600V, TRIAC, Gate Trigger 1.3V 100mA, 3-pin, Through Hole, TOP3 STMicroelectronics [BTA41-600BRG]; 168-6664
0₫
Mã kho: 1686664
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 40A |
| Mounting Type | Through Hole |
| Package Type | TOP3 |
| Maximum Gate Trigger Current | 100mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 420A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 80mA |
| Dimensions | 15.5 x 4.6 x 12.85mm |
| Length | 15.5mm |
| Width | 4.6mm |
| Height | 12.85mm |
| Repetitive Peak Off-State Current | 0.005mA |
| Peak On-State Voltage | 1.55V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
