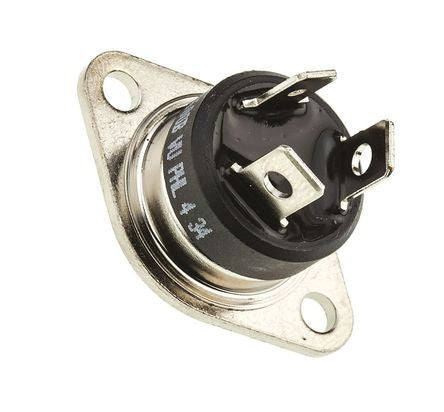

BTA25-800BW 25A, 800V, TRIAC, Gate Trigger 1.3V 50mA, 3-pin, Through Hole, RD-91 STMicroelectronics [BTA25-800BW]; 110-6594
0₫
Mã kho: 1106594
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 25A |
| Mounting Type | Through Hole |
| Package Type | RD-91 |
| Maximum Gate Trigger Current | 50mA |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 260A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 75mA |
| Dimensions | 10.4 x 4.6 x 15.9mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 15.9mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
