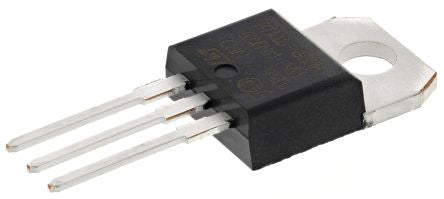

BTA16-800BRG 16A, 800V, TRIAC, Gate Trigger 1.3V 100mA, 3-pin, Through Hole, TO-220AB STMicroelectronics [BTA16-800BRG]; 714-2592
0₫
Mã kho: 7142592
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 16A |
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Gate Trigger Current | 100mA |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 168A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 800V |
| Maximum Holding Current | 50mA |
| Dimensions | 10.4 x 4.6 x 9.3mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 9.3mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 0.005mA |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.55V |
