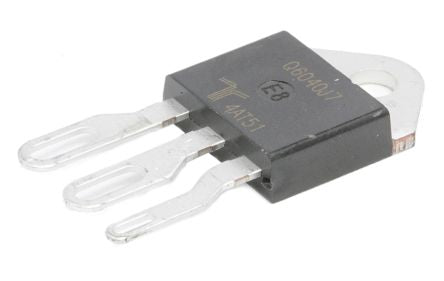

Q6040J7TP 40A, 600V, TRIAC, Gate Trigger 2V 100mA, 3-pin, Through Hole, TO-218X Littelfuse [Q6040J7TP]; 165-9897
by Littelfuse
0₫
Mã kho: 1659897
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 40A |
| Mounting Type | Through Hole |
| Package Type | TO-218X |
| Maximum Gate Trigger Current | 100mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 400A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 2V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 120mA |
| Dimensions | 16 x 4.78 x 21.21mm |
| Length | 16mm |
| Width | 4.78mm |
| Height | 21.21mm |
| Peak On-State Voltage | 1.8V |
| Repetitive Peak Off-State Current | 0.02mA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
