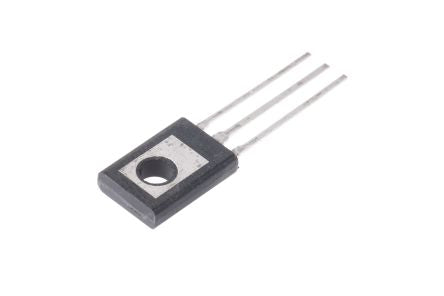

2N6075BG 4A, 600V, TRIAC, Gate Trigger 2.5V 5mA, 3-pin, Through Hole, TO-225 Littelfuse [2N6075BG]; 177-5197
by Littelfuse
0₫
Mã kho: 1775197
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 4A |
| Mounting Type | Through Hole |
| Package Type | TO-225 |
| Maximum Gate Trigger Current | 5mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 30A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 2.5V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 15mA |
| Dimensions | 7.74 x 2.66 x 11.04mm |
| Length | 7.74mm |
| Width | 2.66mm |
| Height | 11.04mm |
| Repetitive Peak Off-State Current | 0.01mA |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 2V |
| Maximum Operating Temperature | +110 °C |
