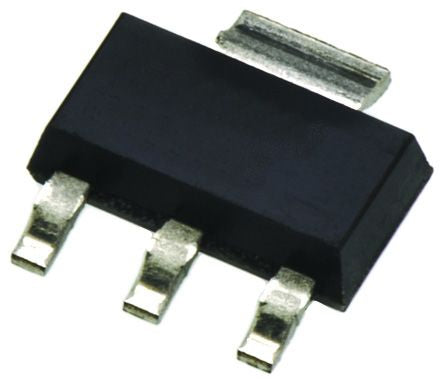

FT0103MN00RB 1A, 600V, TRIAC, Gate Trigger 1.3V 5mA, 3+Tab-pin, Surface Mount, SOT-223 Fagor Electronica [FT0103MN00RB]; 165-5000
0₫
Mã kho: 1655000
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 1A |
| Mounting Type | Surface Mount |
| Package Type | SOT-223 |
| Maximum Gate Trigger Current | 5mA |
| Repetitive Peak Reverse Voltage | 600V |
| Pin Count | 3+Tab |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 7mA |
| Dimensions | 6.7 x 3.7 x 1.7mm |
| Length | 6.7mm |
| Width | 3.7mm |
| Height | 1.7mm |
| Repetitive Peak Off-State Current | 0.5mA |
| Peak On-State Voltage | 1.5V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
