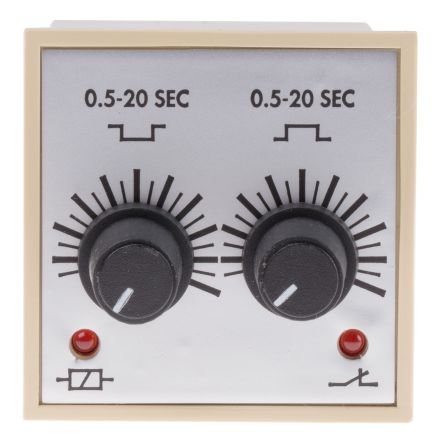

Tempatron Delay Cycle Single Timer Relay, 8-Pin Connector, 0.5 → 20 s, DP-NO/NC, 2 Contacts, DPDT, 110 V ac [FBDC20SLP20SLP110VAC]; 347-703
by Tempatron
0₫
Mã kho: 347703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 110 V ac |
| Time Range | 0.5 → 20 s |
| Mode of Operation | Delay Cycle |
| Mounting Type | Panel Mount, Plug In |
| Number of Timer Functions | Single |
| Number of Contacts | 2 |
| Time Increment | Seconds |
| Power Supply | External |
| Contact Configuration | DP-NO/NC |
| Current Maximum | 0.416666666666667 |
| Terminal Type | 8-Pin Connector |
| Maximum Voltage | 30 V dc, 240 V ac |
| Width | 48mm |
| Contact Material | Silver Cadmium Oxide |
| Depth | 106mm |
| Length | 48mm |
| Minimum Operating Temperature | -10°C |
| Switch Configuration | DPDT |
| Time Delay | 200 (Reset) ms |
| Maximum Operating Temperature | +60°C |
