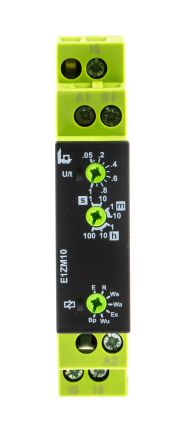

Tele Multi Function Timer Relay, 50 ms → 100 h, SPDT, 1 Contacts, SPDT, 12 → 240 V ac/dc [E1ZM10 12-240V AC/DC]; 160-284
by Tele
0₫
Mã kho: 160284
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 12 → 240 V ac/dc |
Time Range | 50 ms → 100 h |
Mode of Operation | Flash Pause First, OFF Delay, ON Delay, ON Delay with Control Contact, One Shot Leading Edge Voltage Controlled, One Shot Leading Edge with Control Contact, One Shot Trailing Edge with Control Contact |
Mounting Type | DIN Rail |
Number of Timer Functions | Multi Function |
Number of Contacts | 1 |
Series | E1ZM10 |
Time Increment | Hours, Milliseconds, Minutes, Seconds |
Power Supply | External |
Contact Configuration | SPDT |
Current Maximum | 0.333333333333333 |
Maximum Voltage | 250 V ac |
Time Delay | 100 (Reset) ms |
Length | 87mm |
Depth | 65mm |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +55°C |
Width | 17.5mm |
Switch Configuration | SPDT |
